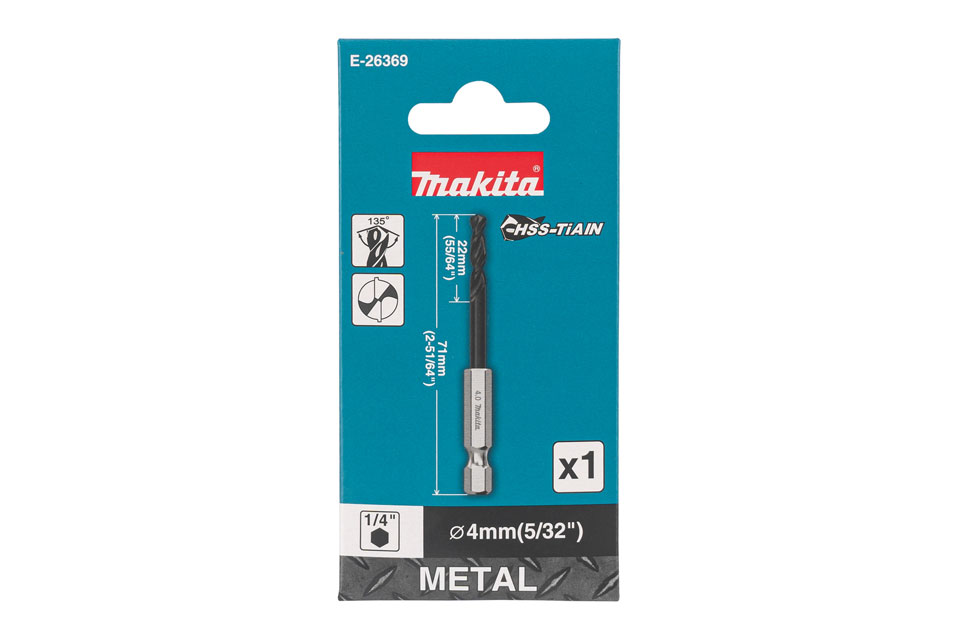

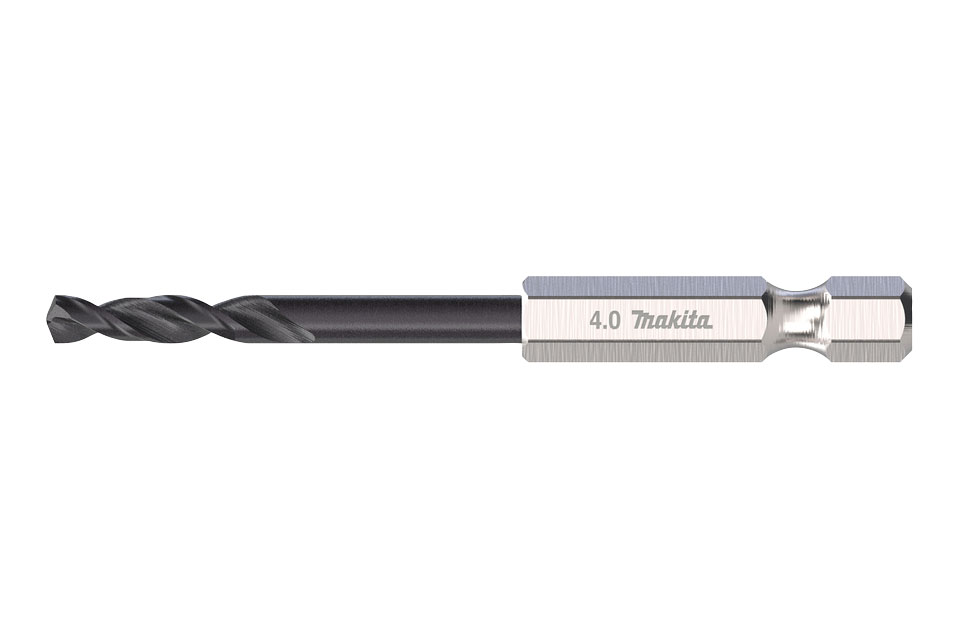

HSS TiAIN 1/4 Hex Shank Drill Bit for Metal
- Compatible with impact drivers and drill chucks. The hex design provides a secure grip with less slippage compared to round shanks, ensuring better torque transfer and more efficient drilling
- Provides excellent heat and wear resistance, extending drill bit life in demanding metal drilling applications
- Features a centring tip with 3 cutting points. The tip allows for less vibration, resulting in fast and clean cutting
- Construction, mechanical, and fabrication use
Specifications
| Part # | Diameter (mm) | Overall Length (mm) | Working Length (mm) | Pack | For model |
|---|---|---|---|---|---|
| E-26319 | 2.0 | 62 | 12 | 1 | |
| E-26325 | 2.5 | 64 | 14 | 1 | |
| E-26331 | 3.0 | 64 | 14 | 1 | |
| E-26347 | 3.2 | 67 | 18 | 1 | |
| E-26353 | 3.5 | 70 | 20 | 1 | |
| E-26369 | 4.0 | 71 | 22 | 1 | |
| E-26375 | 4.2 | 71 | 22 | 1 | |
| E-26381 | 4.5 | 75 | 27 | 1 | |
| E-26397 | 5.0 | 78 | 30 | 1 | |
| E-26406 | 5.5 | 78 | 30 | 1 | |
| E-26412 | 6.0 | 80 | 32 | 1 | |
| E-26428 | 6.5 | 84 | 32 | 1 | |
| E-26434 | 7.0 | 89 | 45 | 1 | |
| E-26440 | 7.5 | 95 | 50 | 1 | |
| E-26456 | 8.0 | 95 | 50 | 1 | |
| E-26462 | 8.5 | 107 | 62 | 1 | |
| E-26478 | 9.0 | 110 | 65 | 1 | |
| E-26484 | 9.5 | 110 | 65 | 1 | |
| E-26490 | 10.0 | 112 | 67 | 1 | |
| E-26509 | 10.5 | 112 | 67 | 1 | |
| E-26515 | 11.0 | 117 | 70 | 1 | |
| E-26521 | 11.5 | 117 | 70 | 1 | |
| E-26537 | 12.0 | 120 | 72 | 1 | |
| E-26543 | 12.5 | 120 | 72 | 1 | |
| E-26559 | 13.0 | 125 | 75 | 1 |
All product and accessory specifications are subject to change without notice.
