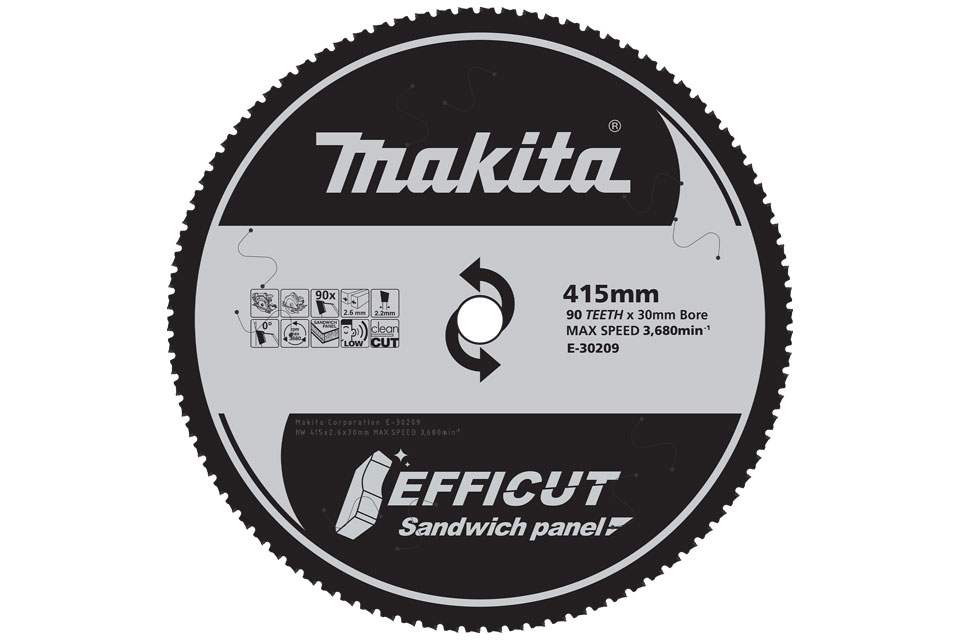

EFFICUT Sandwich Panel Blade 415 x 30 x 90T (E-30209)
- Specially designed teeth reduce material lift and prevent kickback when cutting sandwich panels with metal layers
- New tooth shape (SMTCG + reduced swing width) engineered specifically for sandwich panel cutting
- Blade thickness and tooth design ensure smooth, controlled cutting through panels containing steel sheets
- The large 415mm diameter enables deeper cuts in one pass (with HS013), reducing time vs multi-pass cutting
- The optimised tooth tip angle delivers a balance between cutting speed and longer blade life in thin steel composite panels
Specifications
| Part # | Description (Dia x Bore x Teeth) (mm) | Kerf (mm) | Rake (Deg°) | Ring (mm) | Max Speed (RPM) |
|---|---|---|---|---|---|
| E-30209 | 415 x 30 x 90T | 2.2 | 0 | 25.4 | 3,680 |
All product and accessory specifications are subject to change without notice.
