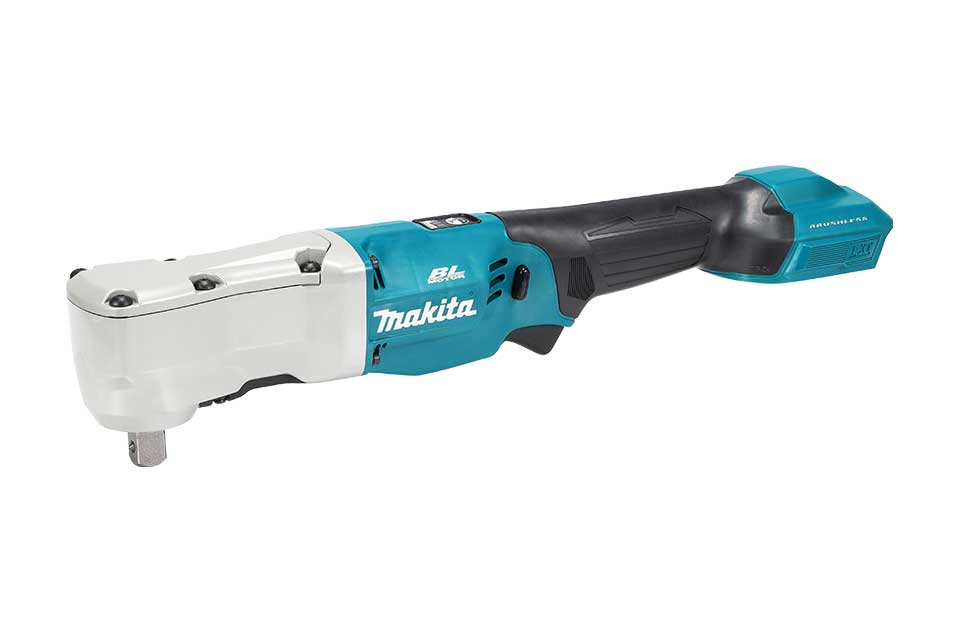

DTL301Z 18V LXT Brushless Right Angle Impact Wrench
- The powerful brushless motor provides up to 530Nm of breakaway torque and 340Nm of fastening torque
- Three selectable power modes in both forward and reverse for various fastening & loosening applications
- Auto-stop mode for forward and reverse rotation to prevent over tightening or over loosening of fasteners
- Features a ½" anvil with indent pin for strong and secure impact socket fitment
Compare
Specifications
| Capacities | |
| - Standard bolt | M10-M20 |
| - High tensile bolt | M10-M16 |
| Max fastening torque | 340Nm (w/BL1860B) |
| Nut-busting torque | 530Nm (w/BL1860B) |
| Impacts per minute | |
| - Hi | 0-4,000ipm |
| - Med | 0-2,800ipm |
| - Lo | 0-1,800ipm |
| No Load Speed | |
| - Hi | 0-3,200rpm |
| - Med | 0-1,500rpm |
| - Lo | 0-1,000rpm |
| Anvil | 12.7mm (1/2") Square Drive Detent Pin |
| Net weight (skin) | 1.42kg |
| Voltage | 18V |
| LXT battery compatibility | 1.5Ah 2Ah 3Ah 4Ah 5Ah 6Ah |
All product and accessory specifications are subject to change without notice.
