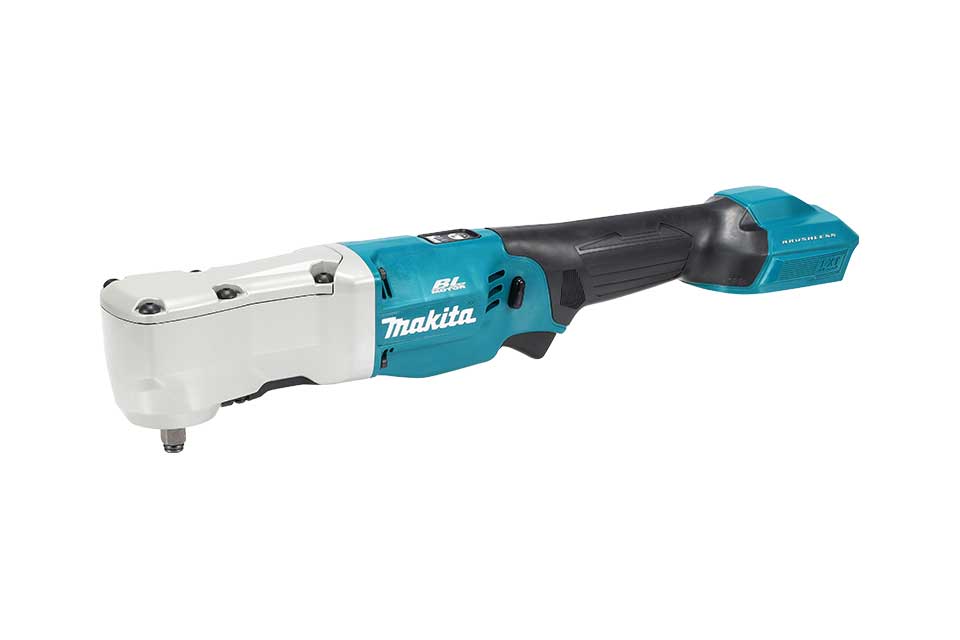

DTL302Z 18V LXT Brushless ⅜" Right Angle Impact Wrench - Friction Ring
- The powerful brushless motor provides up to 530Nm of breakaway torque and 340Nm of fastening torque
- Three selectable power modes in both forward and reverse for various fastening & loosening applications
- Auto-stop mode for forward and reverse rotation to prevent over tightening or over loosening of fasteners

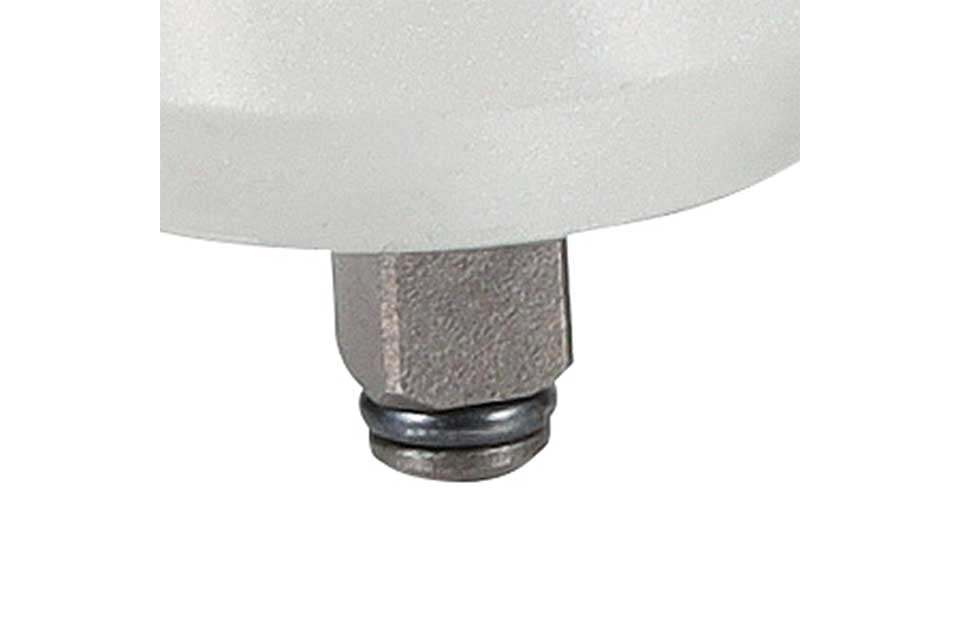

- Features a 3/8" anvil with friction ring for strong and secure impact socket fitment
Compare
Specifications
| Capacities | |
| - Standard bolt | M10 - M20 |
| - High tensile bolt | M10 - M16 |
| Max fastening torque | 340Nm (w/BL1860B) |
| Nut-busting torque | 530Nm (w/BL1860B) |
| Impacts per minute | |
| - Hi | 0-4,000ipm |
| - Med | 0-2,800ipm |
| - Lo | 0-1,800ipm |
| No Load Speed | |
| - Hi | 0-3,200rpm |
| - Med | 0-1,500rpm |
| - Lo | 0-1,000rpm |
| Anvil | 3/8" Square Drive Friction Ring |
| Net weight (skin) | 1.42kg |
| Voltage | 18V |
| LXT battery compatibility | 1.5Ah 2Ah 3Ah 4Ah 5Ah 6Ah 9Ah 12Ah |
All product and accessory specifications are subject to change without notice.
Available options
DTL302Z
skin, tool only
skin, tool only
Optional accessories
Protective Boot Set (422C91-3), Impact XPS 10pc ⅜" Socket Set (E-19009), Impact XPS 9pc ⅜" Deep Impact Socket Set (E-22997)
