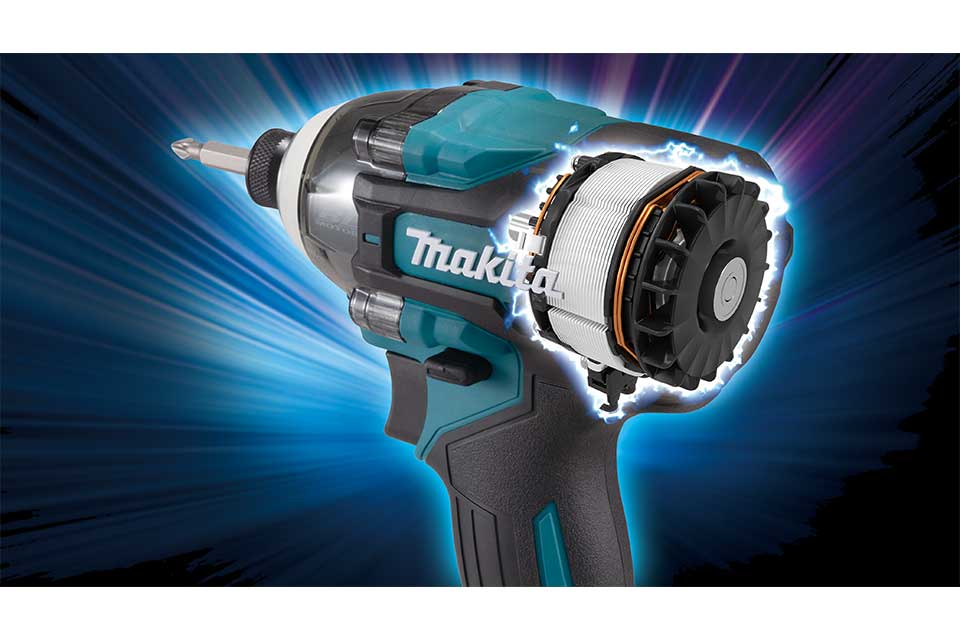

TD004GZ 40Vmax XGT Brushless High Torque Impact Driver
- With 230Nm max torque, this tool excels in heavy-duty fastening, ideal for hex head and star-shaped screws that resist cam-out

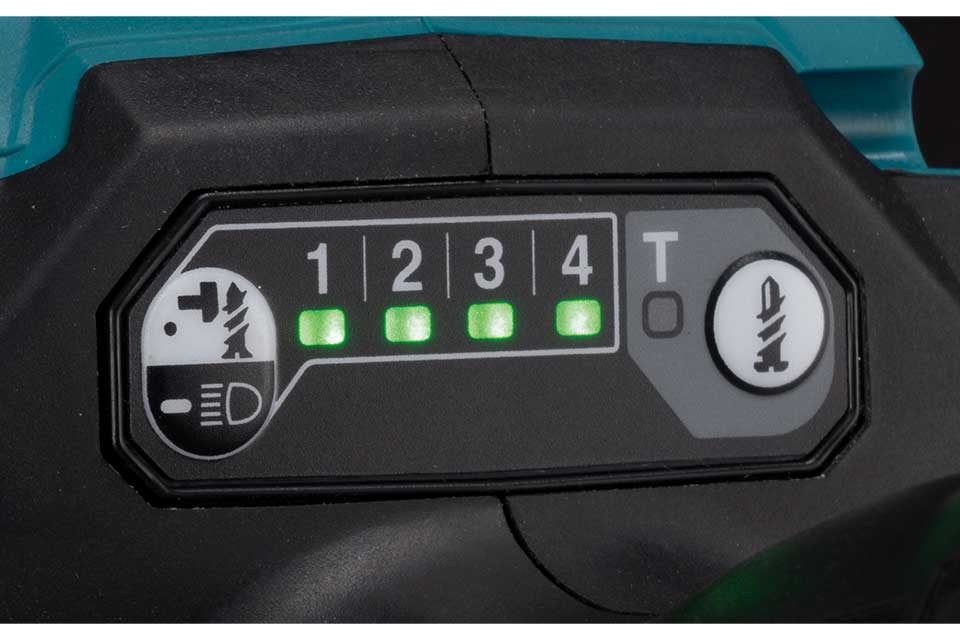

- 4-stage impact power and T-Mode (for thin metal) to match force to screw type/material. Prevents cam-out with Phillips screws & stripping self-tappers in thin metal
- Ideal for demanding tasks such as framing, metal fabrication and concrete formwork. The TD004G is engineered to handle demanding jobs with ease
- Fine-tune RPM and fastening torque to suit specific jobs, providing total control over your work
Compare
Specifications
| Capacities | |
| - Machine screw | M4-M8 |
| - Standard bolt | M5-M20 |
| - High tensile bolt | M5-M14 |
| - Coarse thread | 22-150mm |
| Max fastening torque | 230Nm |
| Impacts per minute | |
| - Max | 0-3,900ipm |
| - Hi | 0-3,600ipm |
| - Med | 0-3,100ipm |
| - Lo | 0-1,900ipm |
| No Load Speed | |
| - Max | 0-3,900rpm |
| - Hi | 0-3,000rpm |
| - Med | 0-2,100rpm |
| - Lo | 0-1,200rpm |
| Collet | 6.35mm - 1/4" Hex |
| Overall dimensions | 136mm |
| Net weight (skin) | 1.1kg |
| Sound Level | 100dB(A) |
| Max power output | 600W |
| Voltage | 40V |
| XGT battery compatibility | 2Ah 2.5Ah 4Ah 5Ah 8Ah |
All product and accessory specifications are subject to change without notice.
Available options
TD004GZ
skin, tool only
skin, tool only
Included accessories
Belt Hook (346317-0)
