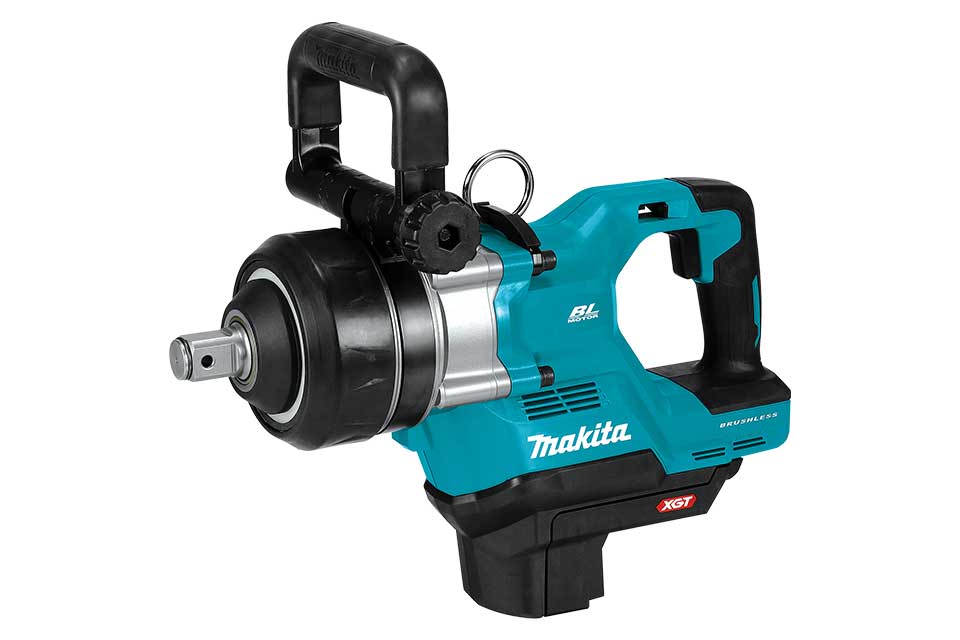

TW009GZ 40Vmax XGT Brushless 1" Impact Wrench
- Delivers up to 3,150Nm of fastening torque and 4,000Nm of breakaway torque, providing an excellent balance of high torque and maneuverability for demanding industrial applications
- Forward and reverse rotation auto-stop modes help prevent over-tightening and fastener loss
- Electronic 4-stage impact power selection provides added versatility across a wide range of fastening applications
- Provides excellent illumination for application in darker areas, providing clear visibility with pre-glow and after-glow functions
- Tool-less adjustable side handle installs 360° and allows forward and backward angle adjustment to suit a wide range of working positions
Specifications
| Capacities | |
| - Standard bolt | M27 - M45 |
| - High tensile bolt | M20 - M33 |
| Max fastening torque | 3,150Nm |
| Nut-busting torque | 4,000Nm |
| Impacts per minute | |
| - Max | 0 - 1,750ipm |
| - Hi | 0 - 1,500ipm |
| - Med | 0 - 1,300ipm |
| - Lo | 0 - 1,200ipm |
| No Load Speed | |
| - Max | 0 - 1,200rpm |
| - Hi | 0 - 850rpm |
| - Med | 0 - 700rpm |
| - Lo | 0 - 600rpm |
| Anvil | 25.4mm (1") | Friction Ring |

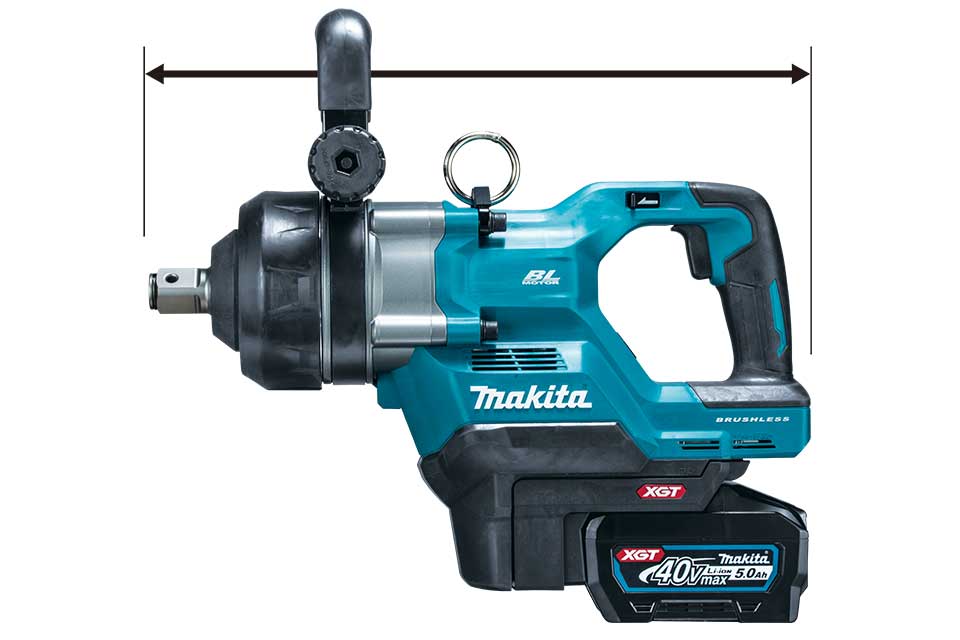

| Overall dimensions | 435mm |
| Net weight (skin) | 9.8kg |
| Voltage | 40V |
| XGT battery compatibility | 4Ah 5Ah 8Ah |
All product and accessory specifications are subject to change without notice.
Available options
skin, tool only
Optional accessories
1" Deep drive Impact Sockets:
Deep Impact Socket 1" 27mm x 90mm (E-16558)
Deep Impact Socket 1" 30mm x 90mm (E-16520)
Deep Impact Socket 1" 32mm x 90mm (E-16508)
Deep Impact Socket 1" 33mm x 90mm (E-16499)
Deep Impact Socket 1" 34mm x 90mm (E-16483)
Deep Impact Socket 1" 36mm x 90mm (E-16477)
Deep Impact Socket 1" 38mm x 90mm (E-16461)
Deep Impact Socket 1" 40mm x 90mm (E-16455)
Deep Impact Socket 1" 44mm x 90mm (E-16449)
Deep Impact Socket 1" 46mm x 100mm (B-52174)
Deep Impact Socket 1" 50mm x 100mm (E-16411)
1" Standard Deep drive Impact Sockets:
Impact Socket 1" Square Drive, 27mm (E-24511)
Impact Socket 1" Square Drive, 30mm (E-24527)
Impact Socket 1" Square Drive, 32mm (E-24533)
Impact Socket 1" Square Drive, 33mm (E-24549)
Impact Socket 1" Square Drive, 34mm (E-24555)
Impact Socket 1" Square Drive, 36mm (E-24561)
Impact Socket 1" Square Drive, 38mm (E-24577)
Impact Socket 1" Square Drive, 40mm (E-24583)
Impact Socket 1" Square Drive, 41mm (E-24599)
Impact Socket 1" Square Drive 42mm (E-24608)
Impact Socket 1" Square Drive, 44mm (E-24614)
Impact Socket 1" Square Drive, 46mm (E-24620)
Impact Socket 1" Square Drive, 50mm (E-24636)
