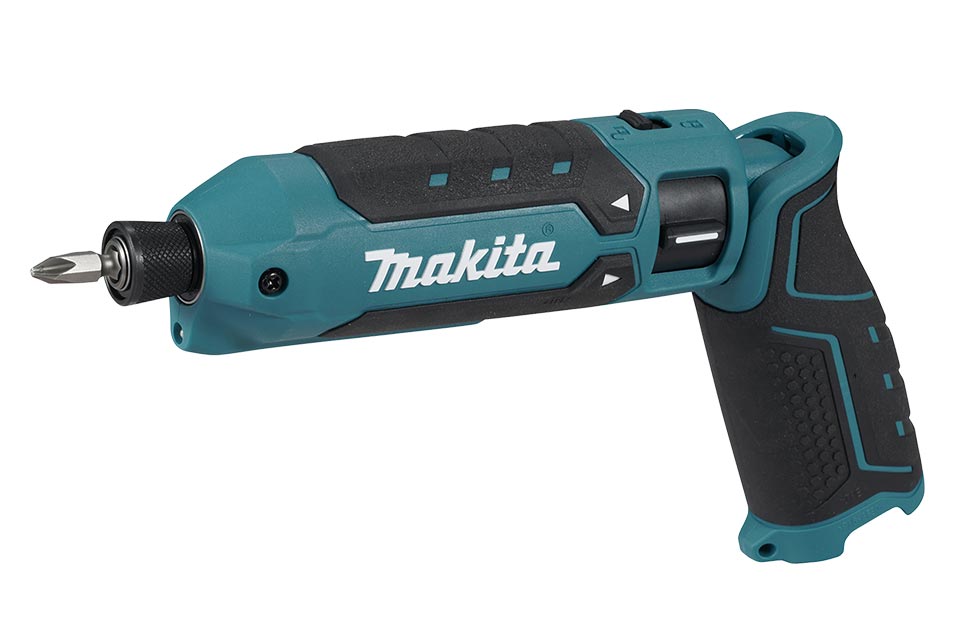

TD023DSE 7.2V Impact Stick Driver
Performance: Delivers up to 25Nm of maximum fastening torque in a compact form factor. High speed output of 0-2,450rpm and 0-3,000IPM reduces fastening time for improved productivity
Multi‑function Variable Speed: Rotary switch allows the operator to adjust driving speed and direction simultaneously for precise fastening control. Switch position is easily accessible for both left‑ and right‑handed users
Easy‑to‑grip tapered Bit Sleeve: Is designed for quick and effortless bit removal. Standard 6.35mm (1/4") hex chuck allows fast bit changes
Visibility: Integrated LED job light with pre‑glow function illuminates both the fastening point and surrounding area by expanding the illuminated field for improved visibility
Ergonomics: Soft‑grip handle provides increased comfort and secure handling during operation. Well‑balanced design supports both straight and pistol‑grip positions for versatile use
Specifications
| Capacities | |
| - Machine screw | M3-M8 |
| - Standard bolt | M3-M5 |
| - High tensile bolt | M3-M6 |
| - Coarse thread | 22 - 45mm |
| Max fastening torque | 25Nm |
| Impacts per minute | 0-3,000ipm |
| No Load Speed | 2,450rpm |
| Collet | 6.35mm - 1/4" hex drive |
| Overall dimensions | 285mm |
| Net weight | 0.58kg |
| Voltage | 7.2V |
All product and accessory specifications are subject to change without notice.
Available options
supplied with 2x 1.5Ah batteries (BL0715), charger (DC10WA) & Carry Case
